Acoustics

Increasingly, technology is improving the options for fauna survey, but this comes with a need for advanced tools to analyse the vast amounts of data that can be collected. This is especially apparent in the world of eco-acoustics. NSW DPIRD is using artificial intelligence to develop tools for identifying key forest species from acoustic recordings.

Currently, open-source software AviaNZ (Marsland et al. 2019) is being used for this purpose.

Recognisers for different species have been developed. Read the Fauna Call Recogniser Report (PDF, 633.74 KB), the final report prepared for the NSW NRC outlining early progress and preliminary (draft) recognisers.

Examples of Dingo, Yellow-bellied Glider and Koala calls can be viewed here (displayed on Kaleidoscope software).

Download species recognisers

Koala browsing a blackbuttSpecies recognisers were developed in AviaNZ using CNNs (AI algorithms). The final algorithm for each species aims to provide a balance between maximising true positives and minimising false positives.

It is important to note that all output from these recognisers must be validated manually as results from true positives will be mixed with false positives. Note that recognisers are continually being improved, so this website should be checked regularly for updates.

Like all survey methods, perfect detection is not possible and detection probability ideally should be modelled for different species to identify how much survey effort is required for 95% confidence of detection (see Gonsalves et al. 2024).

View a video showing the use of AviaNZ, especially in relation to call validation.


Note: The equations for calculating Recall and Precision are supplied here.

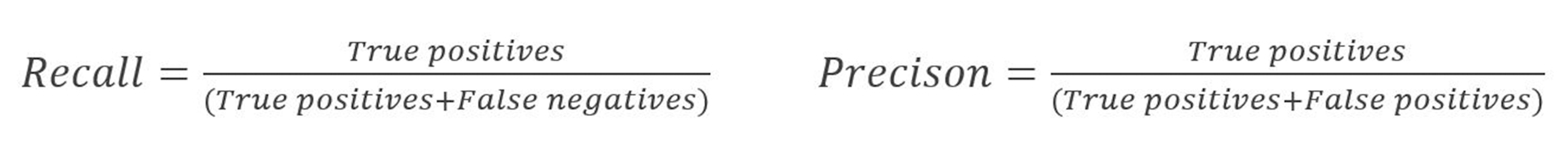

Equations for calculating Recall and Precision

Click below to download the species recogniser(s) of interest, which can be run in AviaNZ software and view their associated metadata (reporting the species test results).


These recognisers are © NSW Department of Primary Industries and Regional Development. They must not be adapted, remixed, transformed or built upon for any purpose or in any way without written consent from DPIRD. The user must attribute the 'NSW Department of Primary Industries and Regional Development' or 'NSW DPIRD'.

By downloading these recognisers you agree to abide by the Creative Commons Attribution-NonCommercial 4.0 International licence (CC BY-NC 4.0).


Barking Owl

Barking Owl metadata information
Species Barking Owl (Ninox connivens)
Software AviaNZ, Version 3.2.3
Recogniser nameBarking_Owl_GV_040524 (ZIP, 4168.79 KB) - download recogniser files here
Training call count 6,010 (10,000 with augmentation)
Call description Two-note “woof-woof” with the first note higher pitched than the second. The duration between the two notes is shorter compared to a boobook call.
Calls sourced from NSW - Pilliga, North Coast, Sydney Northern Beaches
Test files Event and segment-level= 267 files (100 x 30sec files containing the target species and 167 x 30sec files containing false positive examples incl. anthropogenic, biophonic and geophonic noise). Real-world = 360 files (30 sec files split from 3 x 1hr continuous recordings).
False positives Grey-headed Flying Fox, Insects, Yellow-bellied Glider, Ambient noise, Boobook
Test results

Event-level: recogniser performance at level of every event (hit); Segment-level and real-world: recogniser performance at detecting an event anywhere within a 30sec file; TP = true positives; FN = false negatives; FP = false positives; TN = true negatives.

TestTPFNFPTNRecallPrecisionF1SpecificityAccuracy
Event-level (secs) 656 327 894 1,119 0.67 0.42 0.52 0.56 0.59
Segment-level (no. of 30 sec blocks) 89 11 3 164 0.89 0.97 0.93 0.98 0.95
No. of hits 33 1 2 324 0.97 0.94 0.95 0.99 0.99
Example of true positive call in a 30 second spectrogram image
Barking spectrogram image

Glossy Black Cockatoo

Glossy Black Cockatoo metadata information
Species Glossy Black Cockatoo (Calyptorhynchus lathami)
Software AviaNZ, Version 3.2.3
Recogniser nameGlossy_Black_Cockatoo_GV_190324 (ZIP, 4169.48 KB) - download recogniser files here
Training call count 2,418 (10,000 with augmentation)
Call description Creaky and wavering squawks. Quieter and less harsh than other cockatoos.
Calls sourced from NSW - North Coast, Pilliga, South Coast, Xeno-Canto (web source)
Test files Event and segment-level= 190 files (100 x 30sec files containing the target species and 90 x 30sec files containing false positive examples incl. anthropogenic, biophonic and geophonic noise). Real-world = 360 files (30 sec files split from 3 x 1hr continuous recordings).
False positives Chorus calls, Grey-headed Flying Fox, Insects, Sulphur-crested Cockatoo, Galah
Test results

Event-level: recogniser performance at level of every event (hit); Segment-level and real-world: recogniser performance at detecting an event anywhere within a 30sec file; TP = true positives; FN = false negatives; FP = false positives; TN = true negatives.

TestTPFNFPTNRecallPrecisionF1SpecificityAccuracy
Event-level (secs) 431 432 367 1,770 0.50 0.54 0.52 0.83 0.73
Segment-level (no. of 30 sec blocks) 73 27 3 87 0.73 0.96 0.83 0.97 0.84
No. of hits 36 14 7 302 0.73 0.84 0.78 0.98 0.94

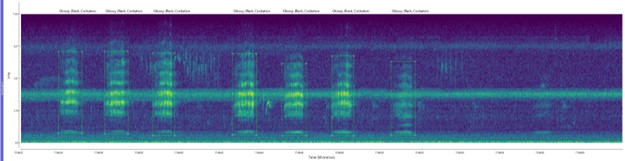

Example of true positive call in a 30 second spectrogram image
Glossy Black Cockatoo spectrogram image

Greater Sooty Owl

Greater Sooty Owl metadata information
Species Greater Sooty Owl (Tyto tenebricosa)
Software AviaNZ, Version 3.2.3
Recogniser nameGreater_Sooty_Owl_ROCNN_20-45-54 (ZIP, 4165.35 KB) - download recogniser files here
Training call count 219 (1,500 with augmentation)
Call description Loud descending screech, also referred to as the ‘falling bomb whistle’.
Calls sourced from NSW - North Coast
Test files Event and segment-level= 225 files (33 x 30sec files containing the target species and 192 x 30sec files containing false positive examples incl. anthropogenic, biophonic and geophonic noise). Real-world = 360 files (30 sec files split from 3 x 1hr continuous recordings).
False positives Diurnal birds
Test results

Event-level: recogniser performance at level of every event (hit); Segment-level and real-world: recogniser performance at detecting an event anywhere within a 30sec file; TP = true positives; FN = false negatives; FP = false positives; TN = true negatives.

TestTPFNFPTNRecallPrecisionF1SpecificityAccuracy
Event-level (secs) 83 20 32 6,569 0.81 0.72 0.76 1.00 0.99
Segment-level (no. of 30 sec blocks) 31 2 1 191 0.94 0.97 0.95 1.00 0.99
No. of hits 1 9 0 350 0.10 1.00 0.18 1.00 0.98

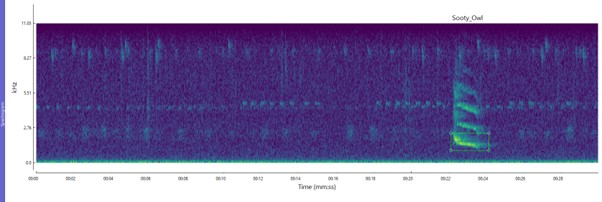

Example of true positive call in a 30 second spectrogram image
Greater Sooty Owl spectrogram image

Grey-headed Flying Fox

Grey-headed Flying Fox metadata information
Species Grey-headed Flying Fox (Pteropus poliocephalus)
Software AviaNZ, Version 3.2.3
Recogniser nameGrey_Headed_Flying_Fox_GV_040824 (ZIP, 4184 KB) - download recogniser files here
Training call count 14,237 calls (32,000 with augmentation)
Call description High-pitched, single-note shriek; cackling and squabble calls.
Calls sourced from NSW - North Coast, Sydney Northern Beaches
Test files Event and segment-level= 264 files (96 x 30sec files containing the target species and 168 x 30sec files containing false positive examples incl. anthropogenic, biophonic and geophonic noise). Real-world = 360 files (30 sec files split from 3 x 1hr continuous recordings).
False positives Masked Owl, Sooty Owl, Bird chorus, Yellow-bellied Glider, Kookaburra, Insects, Day birds
Test results

Event-level: recogniser performance at level of every event (hit); Segment-level and real-world: recogniser performance at detecting an event anywhere within a 30sec file; TP = true positives; FN = false negatives; FP = false positives; TN = true negatives.

TestTPFNFPTNRecallPrecisionF1SpecificityAccuracy
Event-level (secs) 557 351 105 1,987 0.61 0.84 0.71 0.95 0.85
Segment-level (no. of 30 sec blocks) 81 15 5 163 0.85 0.92 0.88 0.97 0.92
No. of hits 103 38 6 213 0.84 0.94 0.82 0.97 0.88

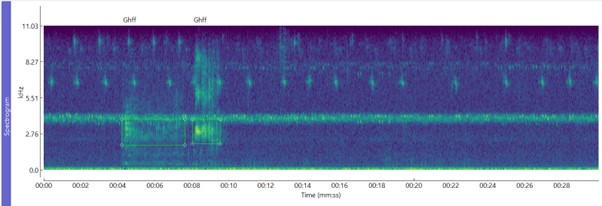

Example of true positive call in a 30 second spectrogram image
Grey-headed Flying Fox spectrogram image

Koala

Koala metadata information
Species Koala (Phascolarctos cinereus)
Software AviaNZ, Version 3.2.3
Recogniser nameKoala_CNN_LG_071223 (ZIP, 4178.59 KB) - download recogniser files here
Training call count 2,738 male bellows (10,000 with augmentation)
Call description Males produce a low frequency bellow with inhalation and exhalation
Calls sourced from NSW - North Coast, Southern Highlands
Test files 19 x 1-hr recordings and 1 x 0.5-hr recording from between dusk and dawn were used for testing. This included a mix of files generated using Songmeter SM4 and Audiomoth. Files contained the target species and a range of negative examples incl. anthropogenic, biophonic and geophonic noise.
False positives Trucks, Trains, Kookaburras
Test results

Event-level: recogniser performance at level of every event (hit); Segment-level and real-world: recogniser performance at detecting an event anywhere within a 30sec file; TP = true positives; FN = false negatives; FP = false positives; TN = true negatives.

TestTPFNFPTNRecallPrecisionF1SpecificityAccuracy
Event-level (secs) 1,146 904 30 58,482 0.56 0.97 0.71 1.00 0.98
Segment-level (no. of 30 sec blocks) 38 17 2 1,940 0.69 0.95 0.80 1.00 0.99
No. of hits 39 21 2 3,701.4 0.65 0.95 0.77 1.00 0.99

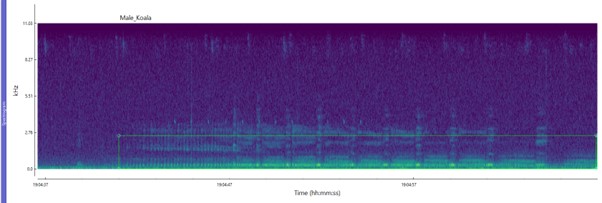

Example of true positive call in a 30 second spectrogram image
Koala spectrogram image
Release notes for previous versions
  • Koala_CNN_LG_010822 – released September 2022
    • Improved recall and precision compared to DPI_Male_Koala_V3_CNN15_10-02-23
  • DPI_Male_Koala_V3_CNN15_10-02-23 – released June 2022
    • Initial release. Please contact author if you would like access to this release

Masked Owl / Tyto Owl

This Masked Owl recoginser is trained on Masked Owl calls but other Tyto Owls also screech and will be recognised, thus requiring expert validation.

Masked Owl metadata information
Species Masked Owl (Tyto novaehollandiae)
Software AviaNZ, Version 3.2.3
Recogniser nameMasked_Owl_GV_210424 (ZIP, 4165.52 KB) - download recogniser files here
Training call count 466 (5,000 with augmentation)
Call description Loud, rasping shriek.
Calls sourced from NSW - North Coast, South Coast, North Sydney
Test files Event and segment-level= 277 files (100 x 30sec files containing the target species and 177 x 30sec files containing false positive examples incl. anthropogenic, biophonic and geophonic noise). Real-world = 360 files (30 sec files split from 3 x 1hr continuous recordings).
False positives Insects, Sirens. Difficult to distinguish between other Tyto sp. and may need expert opinion.
Test results

Event-level: recogniser performance at level of every event (hit); Segment-level and real-world: recogniser performance at detecting an event anywhere within a 30sec file; TP = true positives; FN = false negatives; FP = false positives; TN = true negatives.

TestTPFNFPTNRecallPrecisionF1SpecificityAccuracy
Event-level (secs) 240 49 49 2,653 0.83 0.83 0.83 0.98 0.97
Segment-level (no. of 30 sec blocks) 81 19 2 175 0.81 0.98 0.87 0.99 0.92
No. of hits 16 2 0 342 0.89 1.00 0.94 2.0 0.99

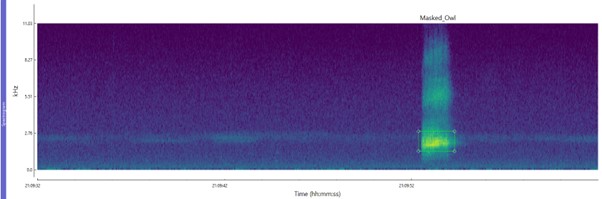

Example of true positive call in a 30 second spectrogram image
Masked Owl / Tyto Owl spectrogram image

Powerful Owl

Powerful Owl metadata information
Species Powerful Owl (Ninox strenua)
Software AviaNZ, Version 3.2.3
Recogniser namePowerful_Owl_CNN_LG_061222 (ZIP, 4162.76 KB) - download recogniser files here
Training call count 2,702 (5,000 with augmentation)
Call description Two-note “woo-hoo” with the second note often higher pitched that the first. Male calls are typically lower pitched and females higher, but there can be overlap.
Calls sourced from NSW - North Coast
Test files Event and segment-level= 229 files (100 x 30sec files containing the target species and 129 x 30sec files containing false positive examples incl. anthropogenic, biophonic and geophonic noise). Real-world = 360 files (30 sec files split from 3 x 1hr continuous recordings).
False positives Barking Owl, Frogs, Kookaburra, Insects, Siren
Test results

Event-level: recogniser performance at level of every event (hit); Segment-level and real-world: recogniser performance at detecting an event anywhere within a 30sec file; TP = true positives; FN = false negatives; FP = false positives; TN = true negatives.

TestTPFNFPTNRecallPrecisionF1SpecificityAccuracy
Event-level (secs) 709 115 874 1,302 0.86 0.45 0.59 0.60 0.67
Segment-level (no. of 30 sec blocks) 94 6 9 120 0.94 0.91 0.93 0.93 0.93
No. of hits 55 32 0 273 0.63 1.00 0.77 1.00 0.91

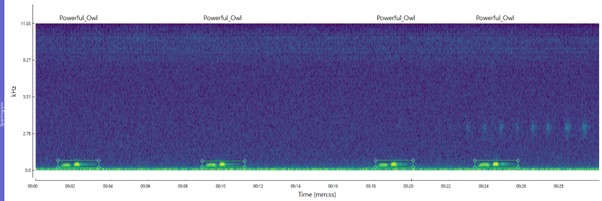

Example of true positive call in a 30 second spectrogram image
Powerful Owl spectrogram image

Southern Boobook

Southern Boobook metadata information
Species Southern Boobook (Ninox novaeseelandiae)
Software AviaNZ, Version 3.2.3
Recogniser nameSouthern_Boobook_GV_190623 (ZIP, 4174.85 KB) - download recogniser files here
Training call count 4,057 (10,000 with augmentation)
Call description

Double-note hoot with the first note higher pitched than the second.

Calls sourced from NSW - North Coast, South Coast, Southern Highlands, Gunnedah
Test files Event and segment-level= 200 files (100 x 30sec files containing the target species and 100 x 30sec files containing false positive examples incl. anthropogenic, biophonic and geophonic noise). Real-world = 360 files (30 sec files split from 3 x 1hr continuous recordings).
False positives There were no recorded false positive detections during testing, however, when this recogniser was used in various datasets, it has detected Cattle, Lyrebirds, Dogs barking, Bandicoot
Test results

Event-level: recogniser performance at level of every event (hit); Segment-level and real-world: recogniser performance at detecting an event anywhere within a 30sec file; TP = true positives; FN = false negatives; FP = false positives; TN = true negatives.

TestTPFNFPTNRecallPrecisionF1SpecificityAccuracy
Event-level (secs) 985 361 901 753 0.73 0.52 0.61 0.46 0.58
Segment-level (no. of 30 sec blocks) 90 14 0 96 0.87 1.00 0.91 1.00 0.93
No. of hits 26 26 0 308 0.5 1.00 0.67 1.00 0.93

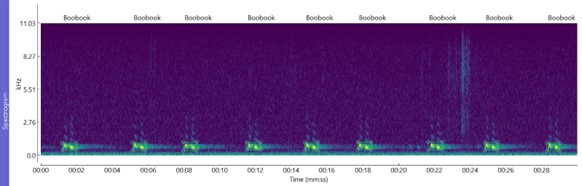

Example of true positive call in a 30 second spectrogram image
Southern Boobook spectrogram image

Squirrel Glider

Squirrel Glider metadata information
Species Squirrel Glider (Petaurus norfolcensis)
Software AviaNZ, Version 3.2.3
Recogniser nameSquirrel_Glider_EK_010823 (ZIP, 4170.1 KB) - download recogniser files here
Training call count 4,015 (10,000 with augmentation)
Call description Short one-note honk, increasing then decreasing in pitch, with emphasis on the down-sweep. Calls can vary in length though are usually consistent within a single calling bout.
Calls sourced from NSW - North Coast
Test files Event and segment-level= 199 files (100 x 30sec files containing the target species and 99 x 30sec files containing false positive examples incl. anthropogenic, biophonic and geophonic noise). Real-world = 360 files (30 sec files split from 3 x 1hr continuous recordings).
False positives Frogs, Anthropogenic and Ambient Noise, Dog, Grey-headed Flying Fox, Owlet Nightjar, Sugar Glider, Fox
Test results

Event-level: recogniser performance at level of every event (hit); Segment-level and real-world: recogniser performance at detecting an event anywhere within a 30sec file; TP = true positives; FN = false negatives; FP = false positives; TN = true negatives.

TestTPFNFPTNRecallPrecisionF1SpecificityAccuracy
Event-level (secs) 260 866 296 1,572 0.23 0.47 0.31 0.84 0.61
Segment-level (no. of 30 sec blocks) 55 45 12 87 0.55 0.82 0.66 0.88 0.71
No. of hits 41 33 20 266 0.55 0.67 0.61 0.93 0.85

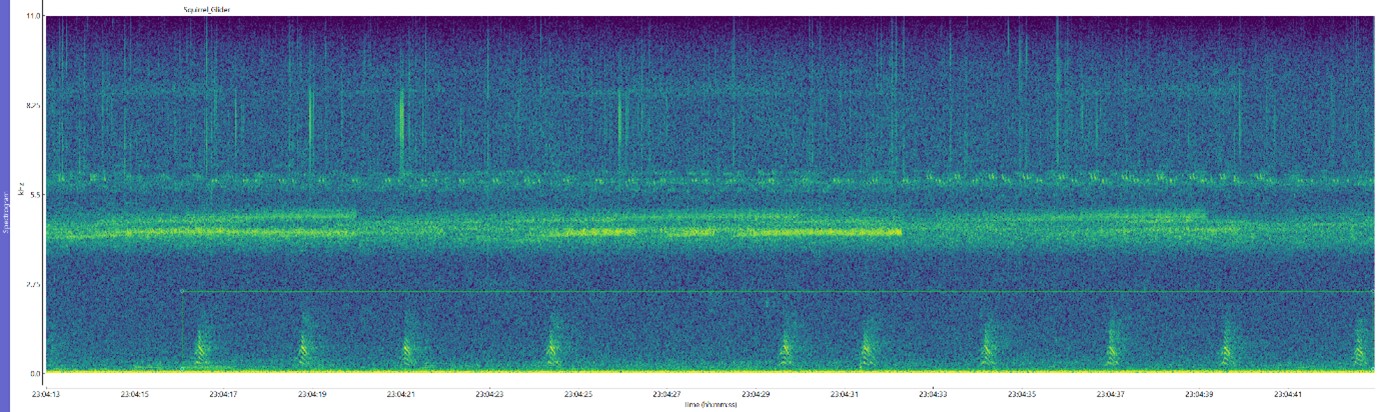

Example of true positive call in a 30 second spectrogram image
Squirrel Glider spectrogram image

Sugar Glider

Sugar Glider metadata information
Species Sugar Glider (Petaurus breviceps)
Software AviaNZ, Version 3.2.3
Recogniser nameSugar_Glider_EK_040623 (ZIP, 4178.94 KB) - download recogniser files here
Training call count 7,912 (10,000 with augmentation)
Call description Short one-note yip or bark. Will often call repetitively at relatively consistent intervals. 1-4 harmonics are often present.
Calls sourced from NSW - North Coast, South Coast, Southern Highlands
Test files Event and segment-level= 247 files (100 x 30sec files containing the target species and 147 x 30sec files containing false positive examples incl. anthropogenic, biophonic and geophonic noise). Real-world = 720 files (30 sec files split from 6 x 1hr continuous recordings).
False positives Dog, Bandicoot, Barking Owl, Boobook
Test results

Event-level: recogniser performance at level of every event (hit); Segment-level and real-world: recogniser performance at detecting an event anywhere within a 30sec file; TP = true positives; FN = false negatives; FP = false positives; TN = true negatives.

TestTPFNFPTNRecallPrecisionF1SpecificityAccuracy
Event-level (secs) 1,581 411 216 792 0.67 0.89 0.95 0.99 0.96
Segment-level (no. of 30 sec blocks) 93 7 2 145 0.93 0.98 0.76 0.79 0.79
No. of hits 68 11 3 638 0.86 0.96 0.91 1.00 0.98

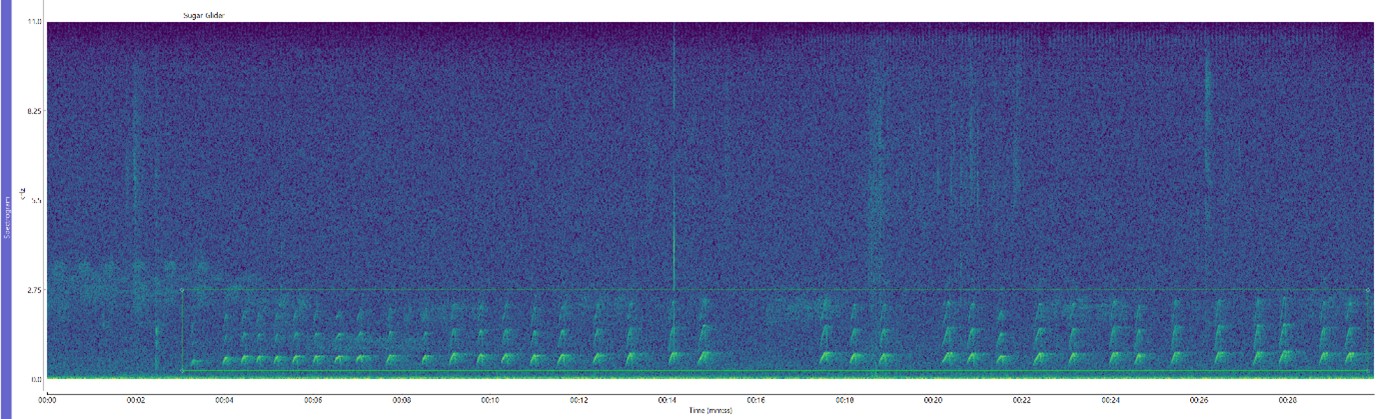

Example of true positive call in a 30 second spectrogram image
Sugar Glider spectrogram image

Yellow-bellied Glider

Yellow-bellied Glider metadata information
Species Yellow-bellied Glider (Petarus australis)
Software AviaNZ, Version 3.2.3
Recogniser nameYellow_Bellied_Glider_CNN_LG_100423 (ZIP, 4168.65 KB) - download recogniser files here
Training call count 283 (4,000 with augmentation)
Call description A very low-pitched soft hoot followed by a high-pitched loud shriek and a lower-pitched gurgle. Sometimes calls only consist of the hoot and gurgle.
Calls sourced from NSW - North Coast
Test files Event and segment-level= 236 files (96 x 30sec files containing the target species and 140 x 30sec files containing false positive examples incl. anthropogenic, biophonic and geophonic noise). Real-world = 360 files (30 sec files split from 3 x 1hr continuous recordings).
False positives Fantail Cuckoo, Grey-headed Flying Fox, Kookaburra, Insects, Squirrel Glider, Sugar Glider
Test results

Event-level: recogniser performance at level of every event (hit); Segment-level and real-world: recogniser performance at detecting an event anywhere within a 30sec file; TP = true positives; FN = false negatives; FP = false positives; TN = true negatives.

TestTPFNFPTNRecallPrecisionF1SpecificityAccuracy
Event-level (secs) 329 183 180 2,305 0.64 0.65 0.64 0.93 0.88
Segment-level (no. of 30 sec blocks) 73 23 9 131 0.76 0.89 0.82 0.94 0.86
No. of hits 7 14 1 338 0.33 0.88 0.48 1.00 0.96

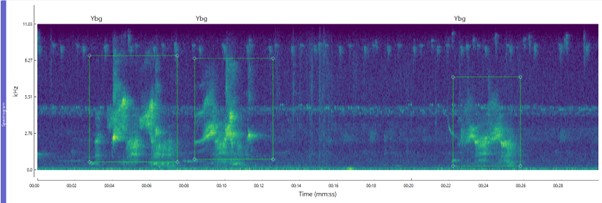

Example of true positive call in a 30 second spectrogram image
Yellow-bellied Glider spectrogram image

Ultrasonics

Bat taking offDPIRD Forest Science also has a long history of using automated methods to identify the thousands of bat calls that can be recorded with bat detectors. Software called Anascheme (developed by Matt Gibson) has been used for this purpose, in association with identification keys developed by DPIRD for different regions of NSW. More details on the identification keys and the software can be found in this publication. DPIRD can provide a service of using Anascheme to analyse large datasets. New AI models for full spectrum calls are currently being developed.

Fauna identification service

DPIRD researchers have extensive experience in developing recognisers and validating their outputs, and we offer this identification service for larger datasets.

Fees for this service can be obtained by contacting brad.law@dpi.nsw.gov.au.
